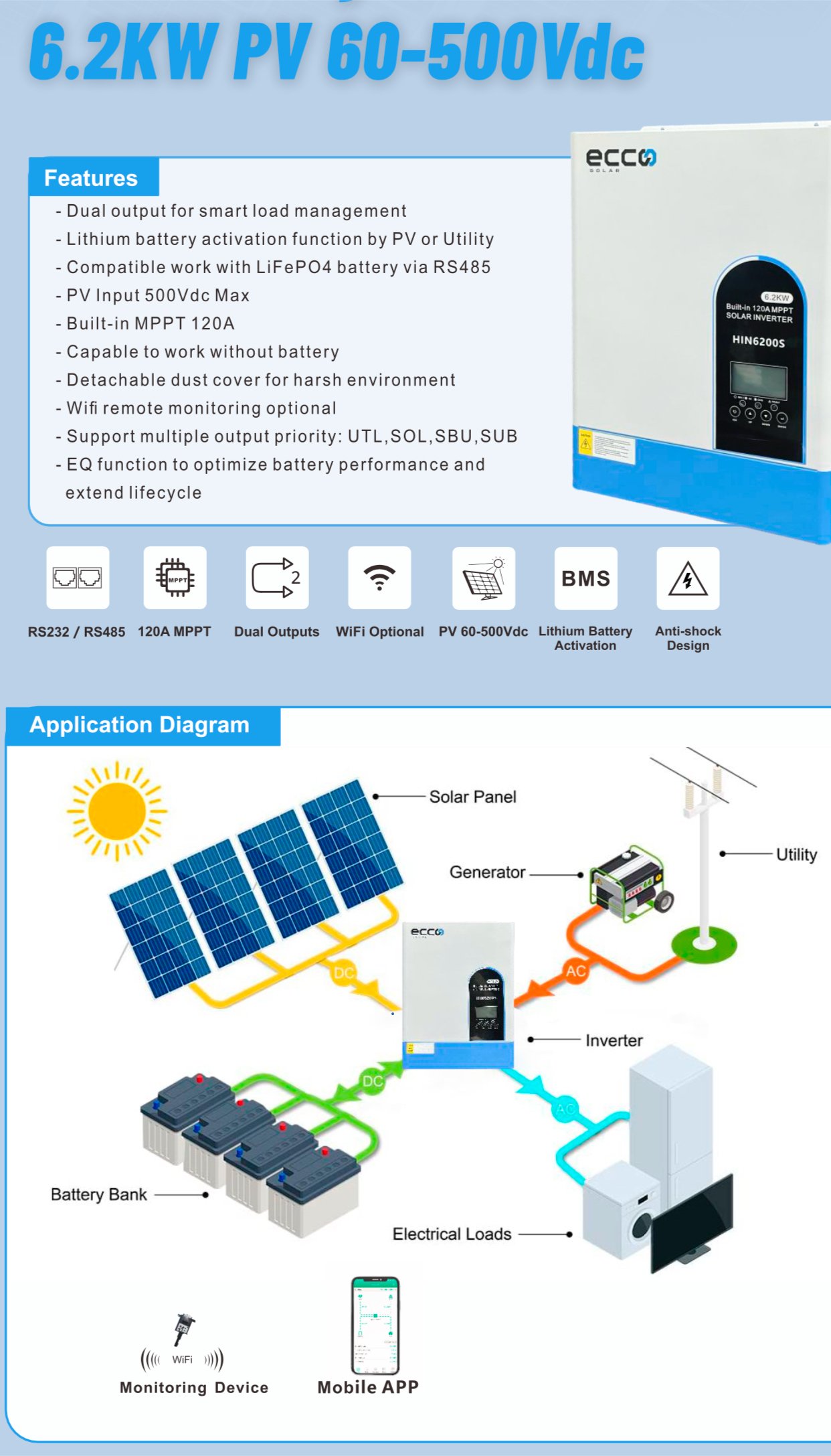

MODEL
HIN6200S
PHASE
1-Phase In /1-Phase Out
Maximum PV Input Power
٠500W
Maximum Main Output Power
6200VA/6200W
Maximum Second Output Power
6200VA/6200W
Maximum Total Output Power
6200VA/6200W
Parallel Capability
NO
Lithium Battery activation
YES ( By PV or Utility)
Lithium Battery communication
YES(RS485)
AC INPUT
Nominal Voltage
230VAC
Acceptable Voltage Range
170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
Frequency
50/60 Hz (Auto sensing)
AC OUTPUT
Nominal Voltage
220/230VAC+5%
Surge Power
12400VA
Frequency
50/60 Hz
Waveform
Pure Sine wave
Dual Outputs
Yes
Transfer Time
10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency
94%
Overload Protection
5s@ > =140% load; 10s@100%~140% load
Admissible Power Factor
0.6~1 (inductive or capacitive)
BATTERY
Battery Voltage
48VDC
Floating Charge Voltage
54VDC
OverCharge Protection
63VDC
Charging Method
CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE
MPPT
Max.PV Array Power
6500W
Max. PV Array Open Circuit Voltage
500VDC
PV Array MPPT Voltage Range
60VDC~500VDC
Max. Solar Input Current
1 / 27A
Max. Solar Charge Current
120A
Max. AC Charge Current
80A
Max. Charge Current
120A
PHYSICAL
Dimensions, D x W x H(mm)|
438x312x122
Package Dimensions, D x W x H(mm)
540x390x210
Net Weight (Kgs)
11
Communication Interface
RS485(RJ45)/RS232(DB9)
INVIRONMENT
Operating Temperature Range
-10°C to 50°C
Storage temperature
– 15°C~ 60°C
Humidity
5% to 95% Relative Humidity (Non-condensing)
