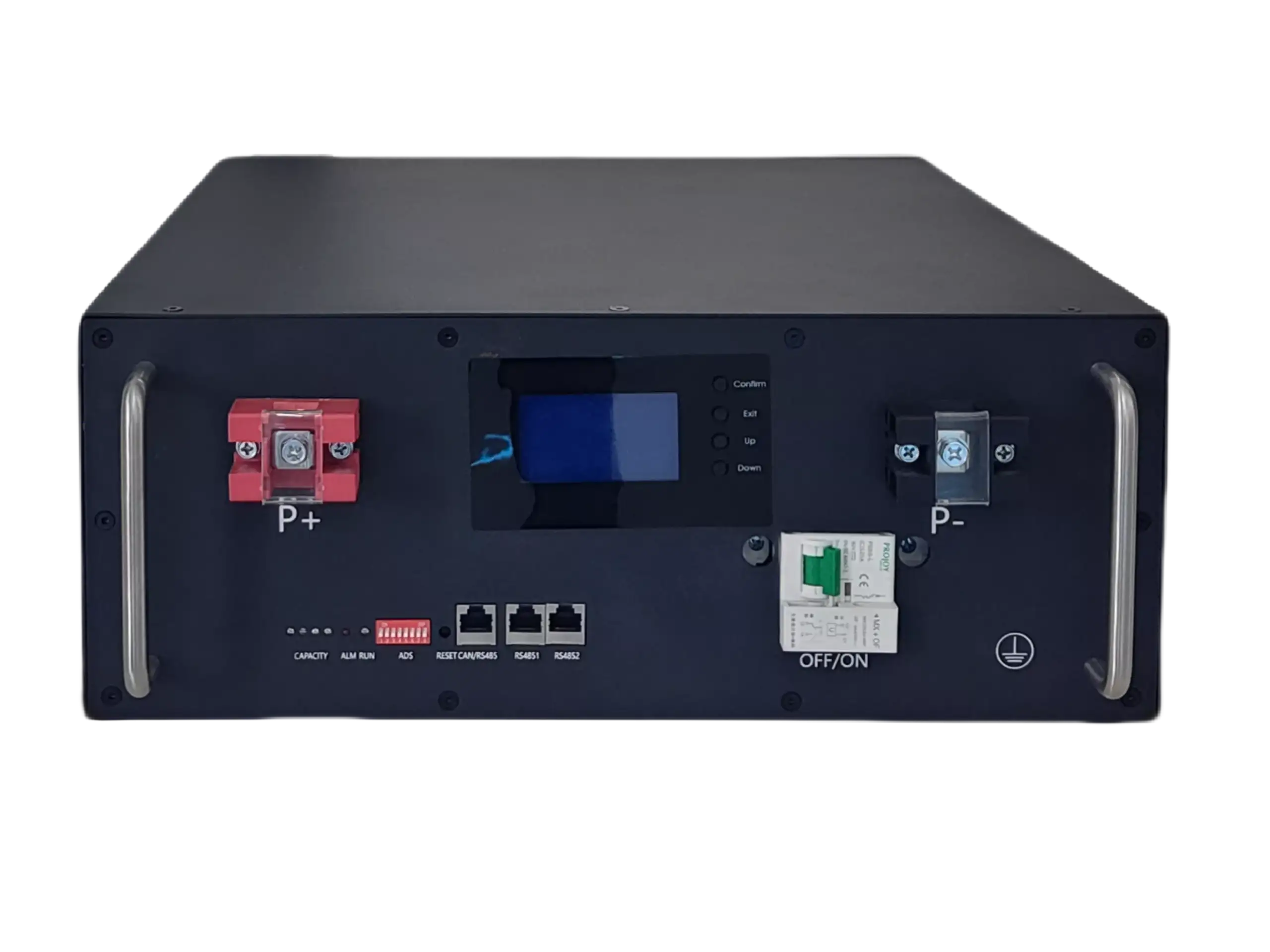

10.2Kw 48200 Fivestar Lithium Battery

Model
10240WH
Usable Capacity
51.2
Rated Voltage
43.2-58.4
Voltage Range
100W
Max Continuous Charge Current
Max Continuous Discharge Current
120W

6000W
Max Output Power
Recommend Output Power
5000W
Display Screen

DOD
≥95%
Modules Connection
Automatic coding, up to 15 groups of parallel machiner
Communication
485/CAN
Ingress Protection
IP21
Cycle Life
≥6000
Working Temperature Range
Discharge:-10°Cto+50°C, Charge: +0°Cto+60°C
Product Dimension(MM)
635*470*180
Package Dimension(MM)
735*540*250
2.4 Recommended Settings

Setting
FS-U01-48200
Max. Charging Voltage
58.4V
Floating charging Voltage
57.6V
Max. Charging Current
100A
Cut-off voltage
43.2
